Slighty odd body mount question...


Recommended Posts

This is a bit of an odd question, but stick with it...

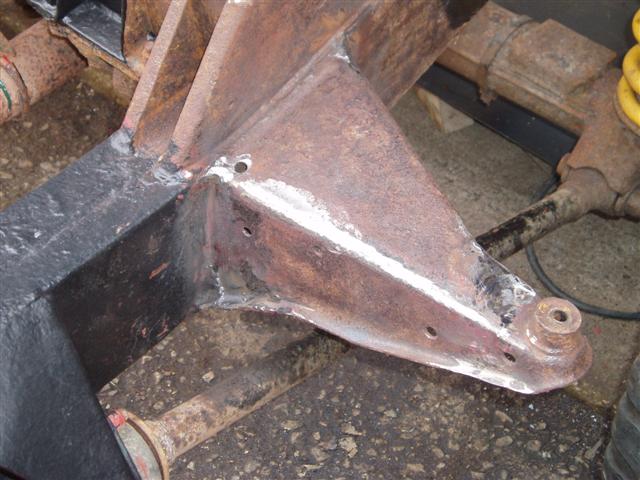

I have stolen one of LandyManLuke's pictures to illustrate a discovery/rangie bodymount:


On the end of the mount is a lump of solid material with a hole drilled through. This is what then has the rubber mounted on top, and the bolt through....

But does the solid lump serve any significant purpose other than providing a flat surface for the mounting hardware to mount onto?

Does the 1" or so of material stop the bolt moving laterally or something?

I need to make up some new mounts for the new truck, and want to use standard rubbers, but I am not sure if what I have planned is strong enough...



Link to comment
Share on other sites

Hmmm, that would explain why the holes on my chassis are nowhere near the middle of the 'lump' in some cases....

hey, it's a silly build - I have far more silly questions, but I'll bug you with those at the weekend.... :P

Link to comment
Share on other sites

Me too, I came to exactly the same conclusion, after looking rather closely at 6 of them for a few hours!

The holes aren't concentric to the solid part, or similar from one mount to the next, so i'd made up my mind that they were jig-drilled after the chassis was welded together. nice to know a few others have had the same thought.

Link to comment
Share on other sites
